Hi !
My first post here so I hope it's the right section in the forum!
I'm trying to get this machine to work but I'm not sure wich model it is?
Every PCB is marked TH bergmann & CO, and a number, but I find it hard to get the specific model.
It may have some similarities to the "Joker's wild" and the main board seems to be the same as in many of Bergmann's wall-games.
Maybe I should do a read-out of the eproms to see if there is some information there?

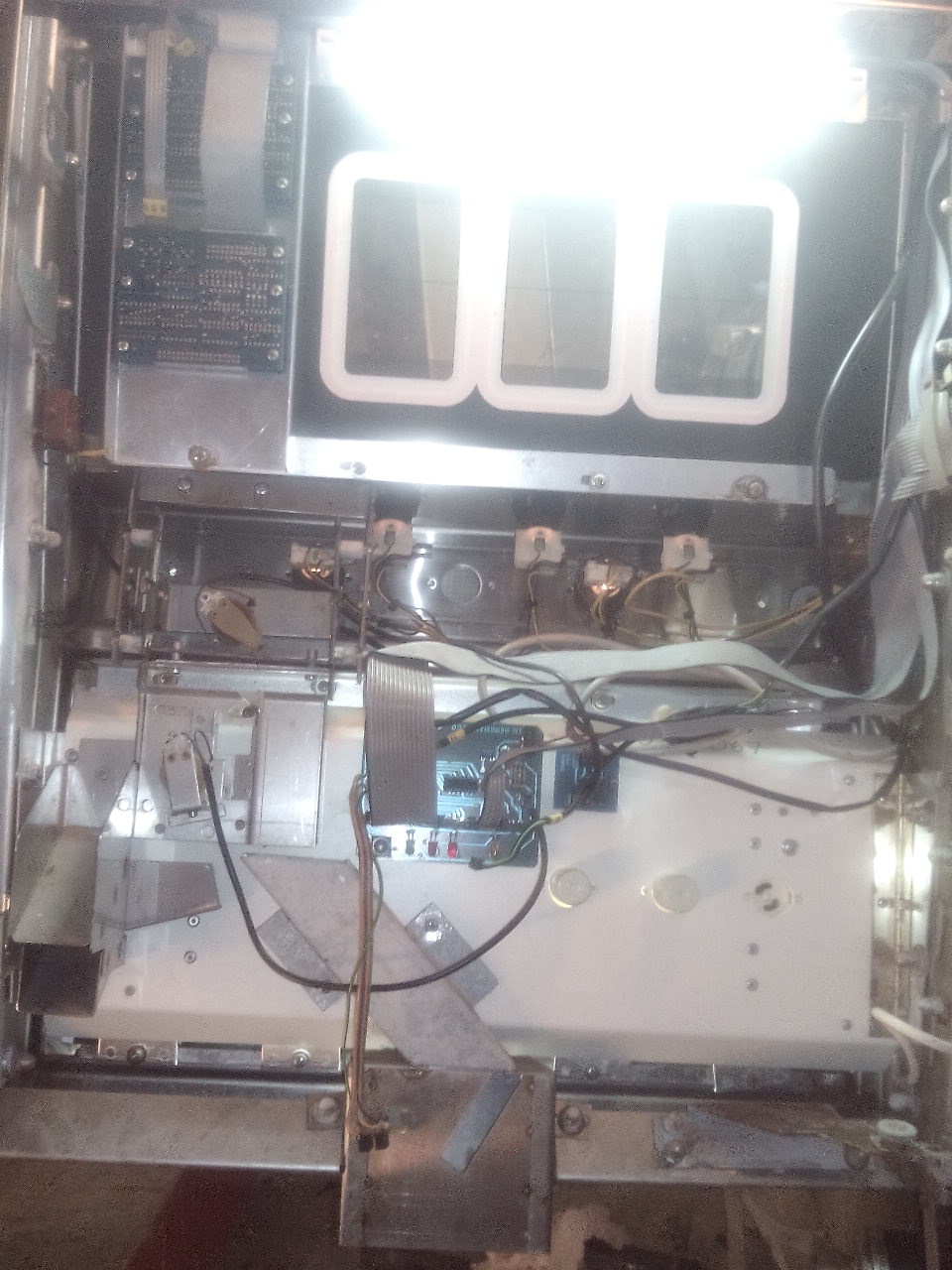

Here's some pictures and numbers from the PCBs:
??? 830150 Lamp-card top-front
RUF 86001 Small card, left side, top
HSA 85035 Back, top. Seems to control the reels. Three led's light up once per rev.

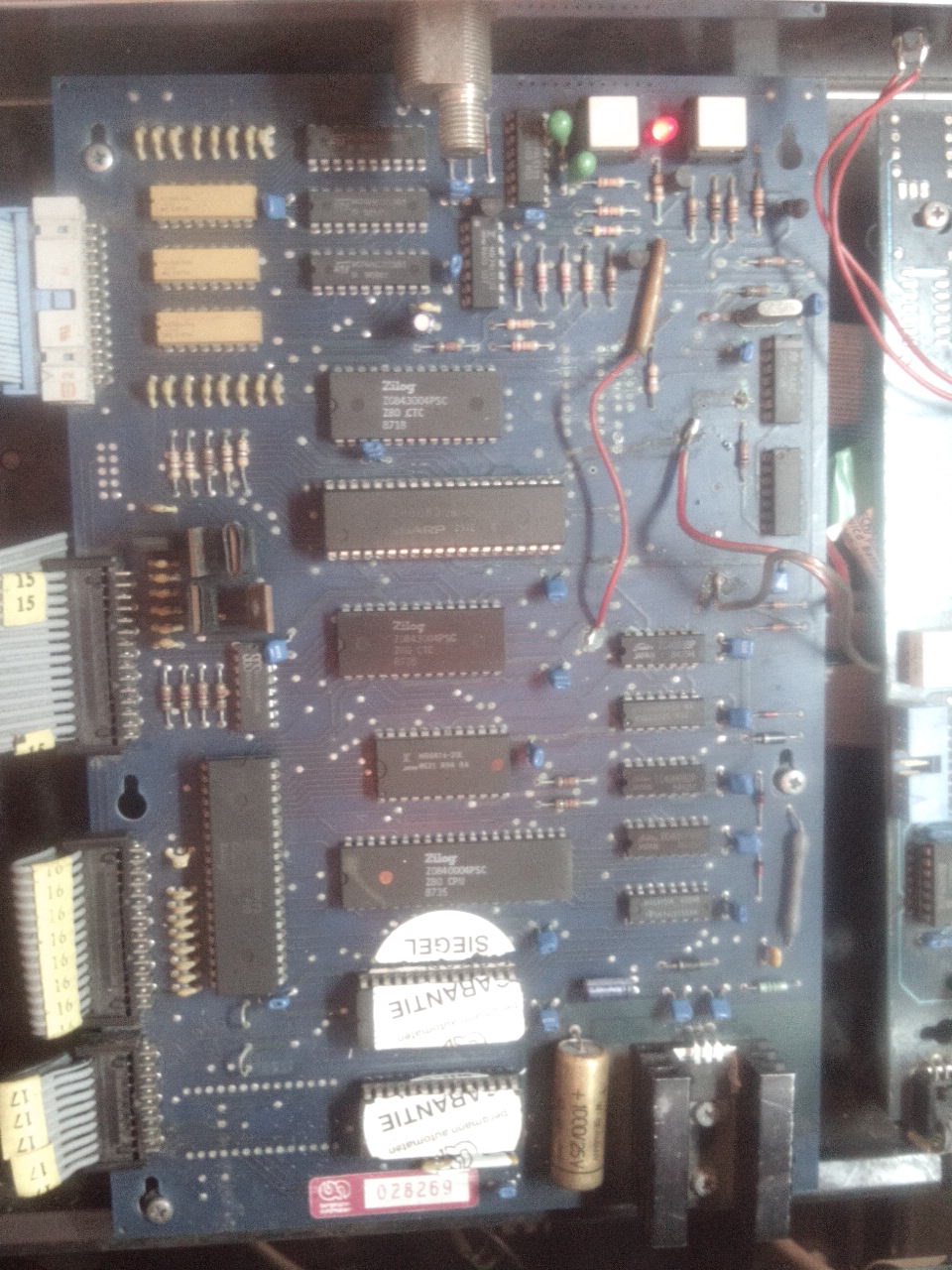

GSE1.4 82007 Main PCB?. Two Z80's, diagnostic-buttons, one led
IFC2 86018 Main PCB 2 ? Several dip's and buttons, a 7 seg. disp. Printer connection.
DIS 84021 Displaycard. Two identical on front.
CC 84009 On front door. With photo-diods. Coin-counter
VBA 88015 On front door. Guess it's just a connection-joint
RCA 85016 Found lose in the machine. Doesn't fit anywhere. There is a rs232 attached on it.

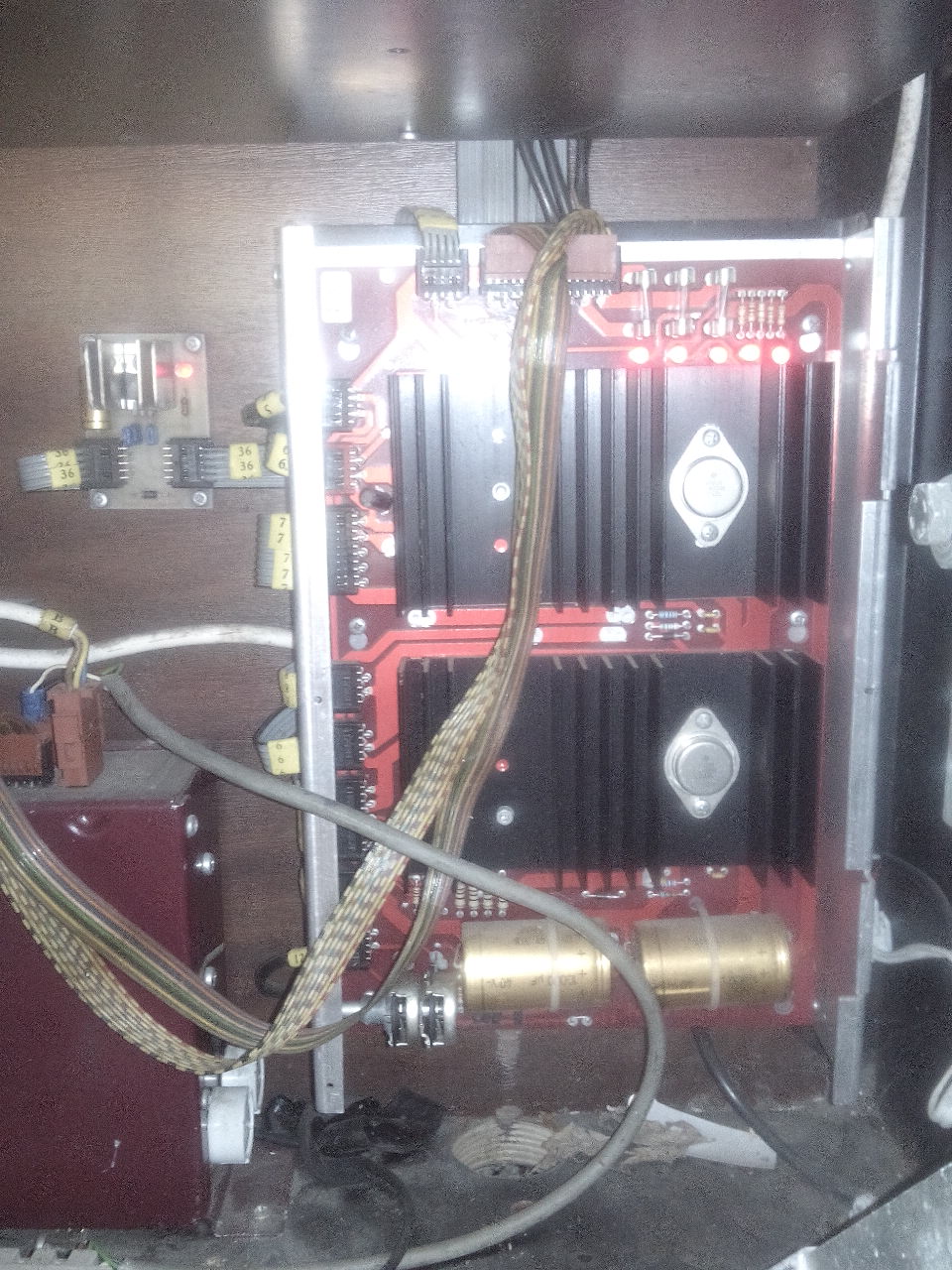

NTG 86019 Power unit.
/Charlie, Sweden
